6. A complete working example

Source: vignettes/a06-CompleteExample.Rmd

Create spectrogram images for training

This example assumes you have downloaded the multiclass data as explained here: https://denajgibbon.github.io/gibbonNetR/articles/a01b-GettingStarted.html.

library(gibbonNetR)
# Check folder composition
TrainingDatapath <- "data/trainingclips"

# Create spectrogram images
spectrogram_images(
  trainingBasePath = TrainingDatapath,
  outputBasePath = "data/trainingimages/",
  minfreq.khz = 0.4,
  maxfreq.khz = 1.6,
  random = FALSE,
  splits = c(0.7, 0.3, 0), # Assign proportion to training, validation, or test folders
  new.sampleratehz = "NA"
)

Check folder structure. There are two folders, train and valid.

list.files("data/trainingimages/")
## [1] "train" "valid"

We can check inside the train folder.

list.files("data/trainingimages/train")
## [1] "female.gibbon"     "hornbill.helmeted" "hornbill.rhino"
## [4] "long.argus"        "noise"

Then look at the first two image files.

list.files("data/trainingimages/", recursive = TRUE)[1:2]
## [1] "train/female.gibbon/female.gibbon_S10_20180620_080003_1236.64391631774_1254.21379409804_.jpg"
## [2] "train/female.gibbon/female.gibbon_S10_20180620_080003_1285.54514263521_1301.64286307873_.jpg"

We also have our test dataset.

list.files("data/testimages/test/", recursive = TRUE)[1:2]
## [1] "female.gibbon/female.gibbon_SW1_20180304_060002_6813.17110142964_6822.1741043056_.jpg"
## [2] "female.gibbon/female.gibbon_SW1_20180304_060002_6961.93442619326_6967.43748506342_.jpg"

Now we can train a model.

For this example we will specify the ‘resnet18’ architecture, as it is the least complex of the ResNet architectures in this package and can run faster. We will only train for 1 and 2 epochs.

# Location of spectrogram images for training
input.data.path <-  'data/trainingimages/'

# Location of spectrogram images for testing
test.data.path <- 'data/testimages/test/'

# User specified training data label for metadata
trainingfolder.short <- 'danummulticlassexample'

# Specify the architecture type
architecture <- c('resnet18') # Choose from 'alexnet', 'vgg16', 'vgg19', 'resnet18', 'resnet50', or 'resnet152'.

# We can specify the number of epochs to train here
epoch.iterations <- c(1,2)

# Function to train a multi-class CNN
gibbonNetR::train_CNN_multi(input.data.path=input.data.path,
                            architecture =architecture,
                            learning_rate = 0.001,
                            class_weights = rep((1 / 5), 5),
                            test.data=test.data.path,
                            unfreeze.param = TRUE,
                            epoch.iterations=epoch.iterations,
                            save.model= TRUE,
                            early.stop = "yes",
                            output.base.path = "data/model_output/",
                            trainingfolder=trainingfolder.short,
                            noise.category = "noise")

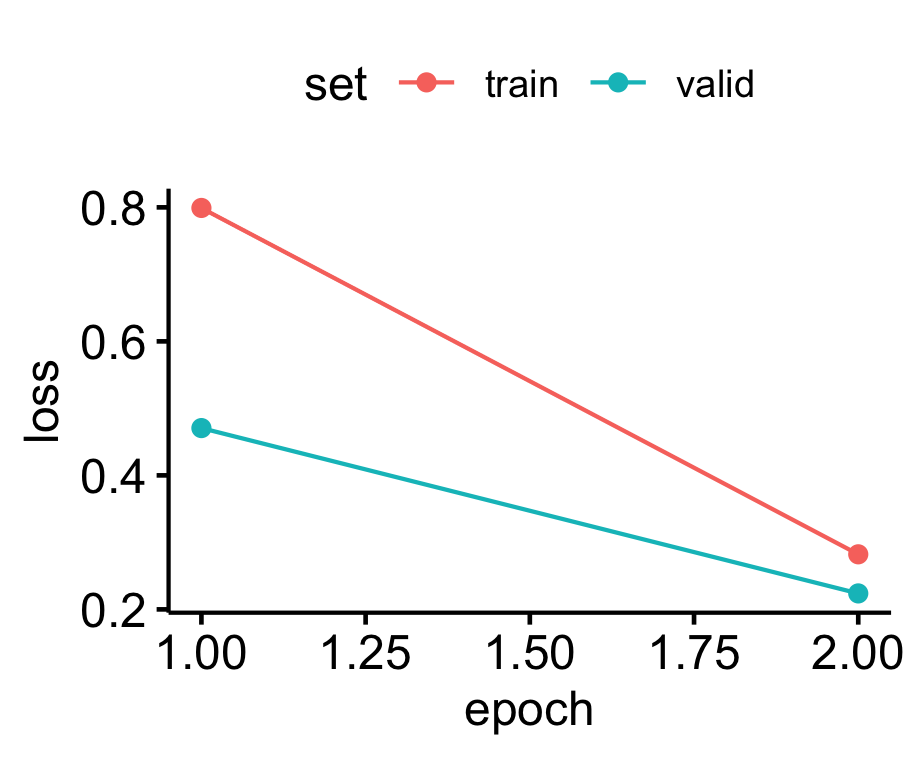

Example loss plot from ’train_CNN_multi
Example loss plot from ’train_CNN_multi

Now we can inspect the output in the ‘data/model_output’ folder.

list.files("data/model_output/",recursive = TRUE)
## [1] "_danummulticlassexample_multi_unfrozen_TRUE_/_danummulticlassexample_1_resnet18_logs_model.csv"
## [2] "_danummulticlassexample_multi_unfrozen_TRUE_/_danummulticlassexample_1_resnet18_model.pt"
## [3] "_danummulticlassexample_multi_unfrozen_TRUE_/_danummulticlassexample_2_resnet18_logs_model.csv"
## [4] "_danummulticlassexample_multi_unfrozen_TRUE_/_danummulticlassexample_2_resnet18_model.pt"
## [5] "_danummulticlassexample_multi_unfrozen_TRUE_/_danummulticlassexample_2_resnet18_output_TrainedModel_testdata.csv"
## [6] "_danummulticlassexample_multi_unfrozen_TRUE_/performance_tables_multi/danummulticlassexample_1_resnet18_TransferLearningCNNDFMultiThreshold.csv"
## [7] "_danummulticlassexample_multi_unfrozen_TRUE_/performance_tables_multi/danummulticlassexample_2_resnet18_TransferLearningCNNDFMultiThreshold.csv"
## [8] "_danummulticlassexample_multi_unfrozen_TRUE_/resnet18_model_metadata.csv"

Now we can evaluate performance.

Once training is complete, we can assess the model’s performance using the function get_best_performance(). This function retrieves the model’s evaluation metrics and generates an F1-score plot. Since this is a toy example, we would not expect great performance.

performancetables.dir <- 'data/model_output/_danummulticlassexample_multi_unfrozen_TRUE_/performance_tables_multi'

PerformanceOutput <- get_best_performance(performancetables.dir = performancetables.dir,
                       model.type = "multi",
                       class = "female.gibbon",
                       Thresh.val = 0.1)
## Evaluating performance for female.gibbon Here are the present classes: female.gibbonEvaluating performance for female.gibbon Here are the present classes: hornbill.helmetedEvaluating performance for female.gibbon Here are the present classes: hornbill.rhinoEvaluating performance for female.gibbon Here are the present classes: long.argus

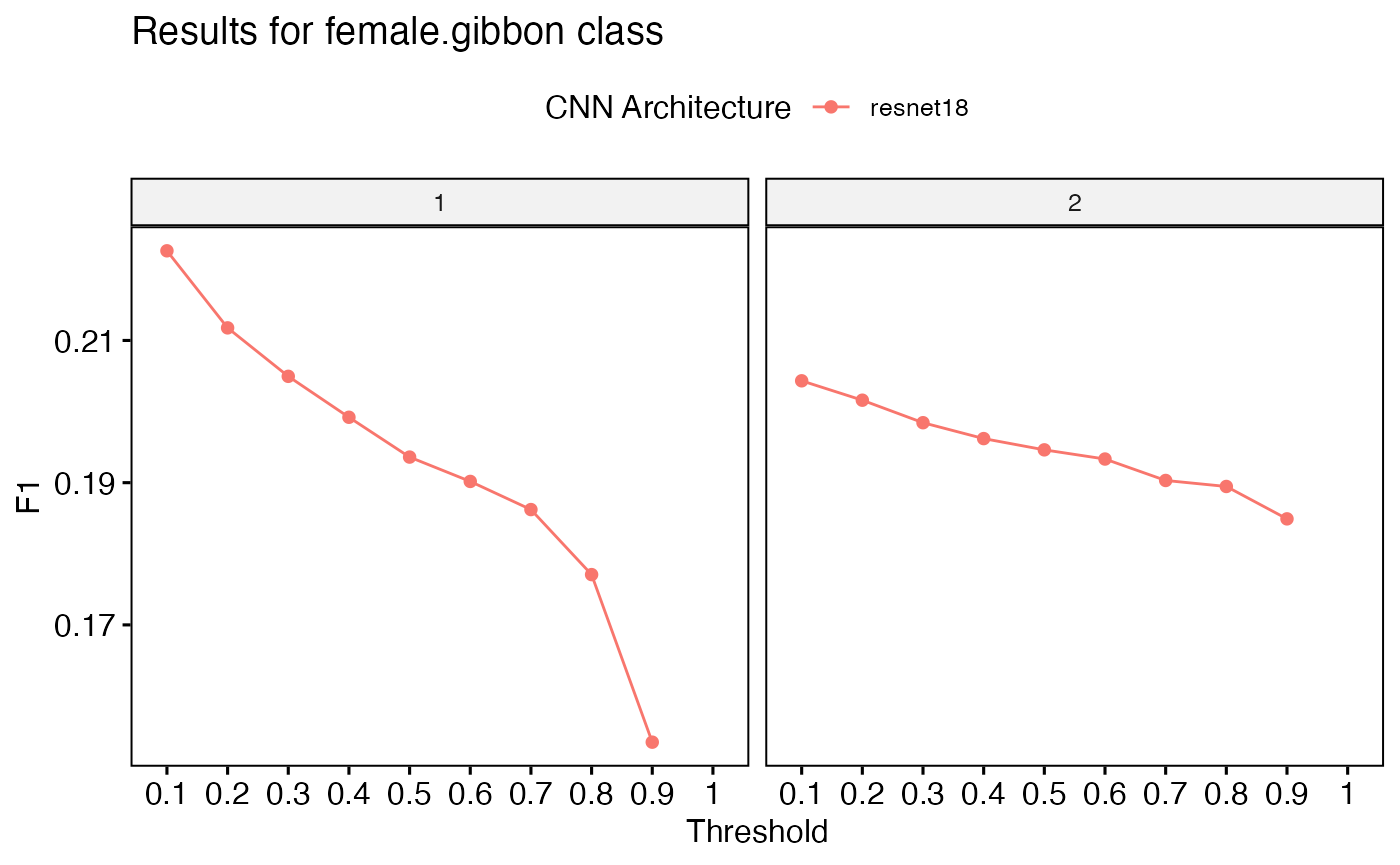

PerformanceOutput$f1_plot

PerformanceOutput$best_f1$F1
## [1] 0.2226057
PerformanceOutput$best_auc$AUC[1]
## [1] 0.4679669

We can deploy the best performing model over a longer soundfile

# Load example sound file
data("TempBinWav")

  # Save in temp directory
dir.create(paste(tempdir(), "/MultiDir/Wav/", sep = ""), recursive = T, showWarnings = FALSE)

  # Write to temp directory
  writeWave(TempBinWav, filename = paste(tempdir(), "/MultiDir/Wav/", "TempBinWav.wav", sep = ""))

  # Specify model path
  ModelPath <- 'data/model_output/_danummulticlassexample_multi_unfrozen_TRUE_/_danummulticlassexample_1_resnet18_model.pt'

  # Deploy trained model over sound files
  deploy_CNN_multi(
    clip_duration = 12,
    architecture = "alexnet",
    output_folder = 'data/Results/Images/',
    output_folder_selections ='data/Results/Selections/',
    output_folder_wav = 'data/Results/Wavs/',
    detect_pattern = NA,
    top_model_path = ModelPath,
    path_to_files = paste(tempdir(), "/MultiDir/Wav/", sep = ""),
    downsample_rate = "NA",
    save_wav = TRUE,
    class_names = c("female.gibbon", "hornbill.helmeted", "hornbill.rhino", "long.argus", "noise"),
    noise_category = "noise",
    single_class = TRUE,
    single_class_category = "female.gibbon",
    threshold = .25,
    max_freq_khz = 2
  )

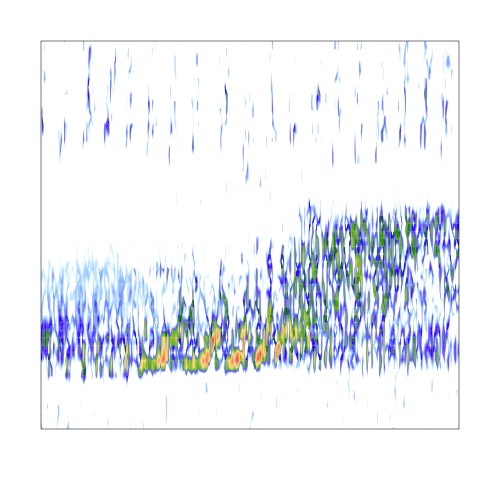

Spectrogram image of a detection from ‘deploy_CNN_multi’
Spectrogram image of a detection from ‘deploy_CNN_multi’

Extract embeddings

This function extracts embeddings from images and applies an unsupervised clustering algorithm (hdbscan). Presently it serves as a data visualization technique. Note that it might take a long time to run on your computer.

  # Find model path
 ModelPath <- 'data/model_output/_danummulticlassexample_multi_unfrozen_TRUE_/_danummulticlassexample_1_resnet18_model.pt'

  # Specify model path
 ImageFilePath <- 'data/testimages/test/'

  # Function to extract and plot embeddings
  result <- extract_embeddings(
    test_input = ImageFilePath,
    model_path = ModelPath,
    target_class = "female.gibbon",
    unsupervised = "TRUE"
  )

  result$EmbeddingsCombined

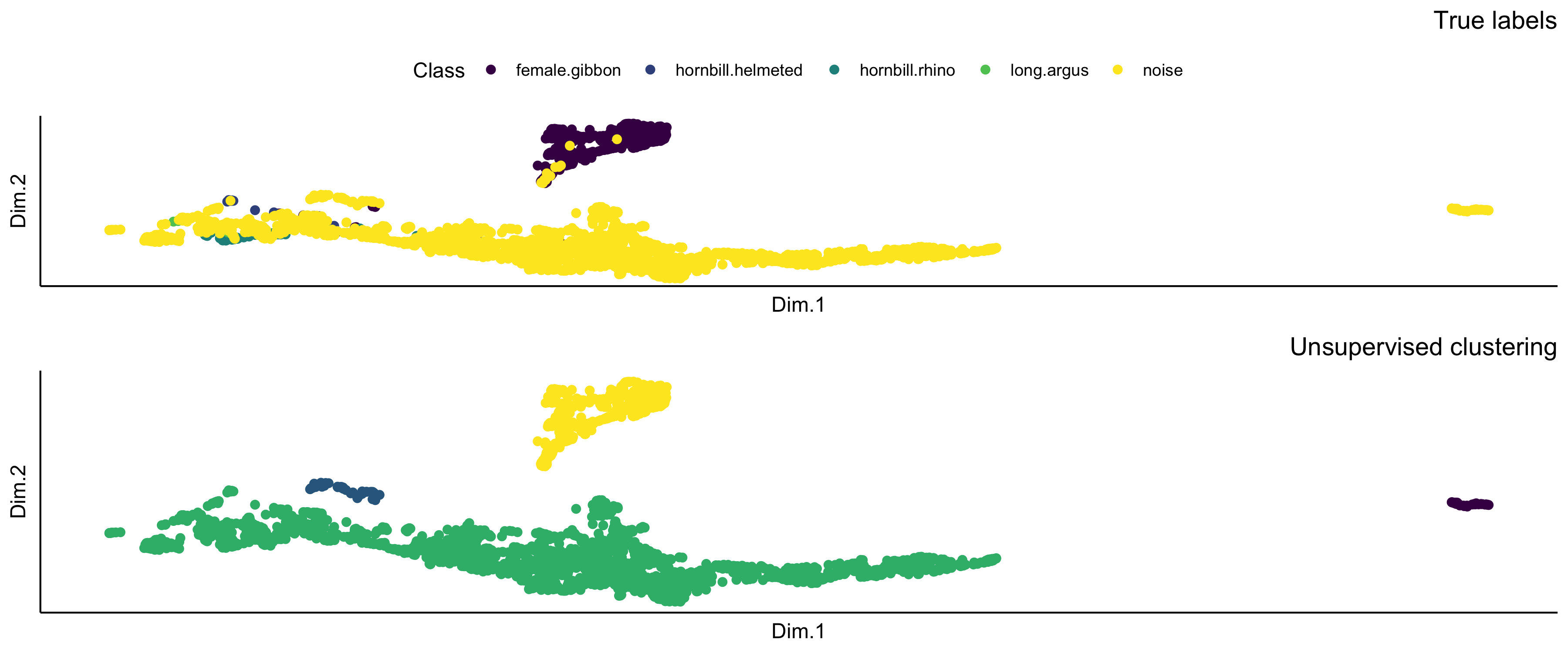

Unsupervised clustering plot
Unsupervised clustering plot
result$NMI
[1] 0.8275459
> result$ConfusionMatrixUnsupervisedAssigment
         Sensitivity          Specificity       Pos Pred Value
           0.9407115            0.9933333            0.9694501
      Neg Pred Value            Precision               Recall
           0.9867550            0.9694501            0.9407115
                  F1           Prevalence       Detection Rate
           0.9548646            0.1835994            0.1727141
Detection Prevalence    Balanced Accuracy
           0.1781567            0.9670224
